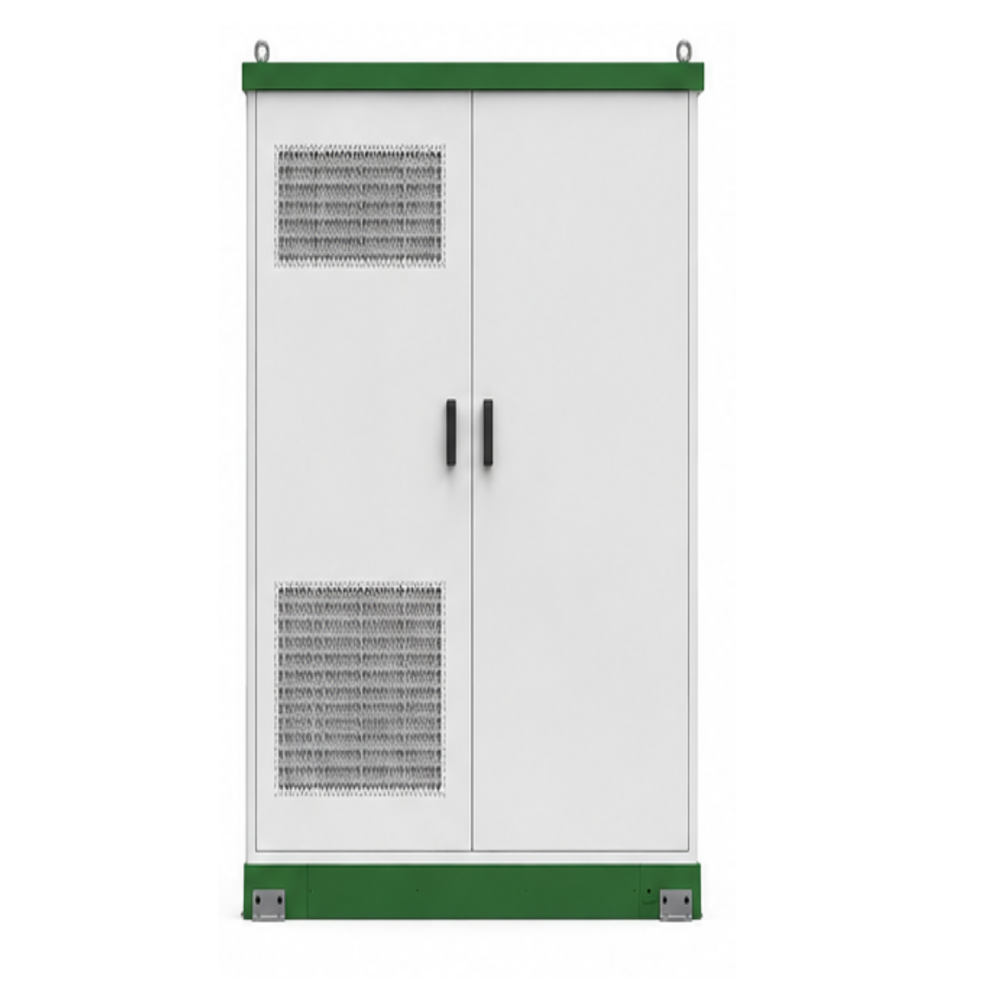

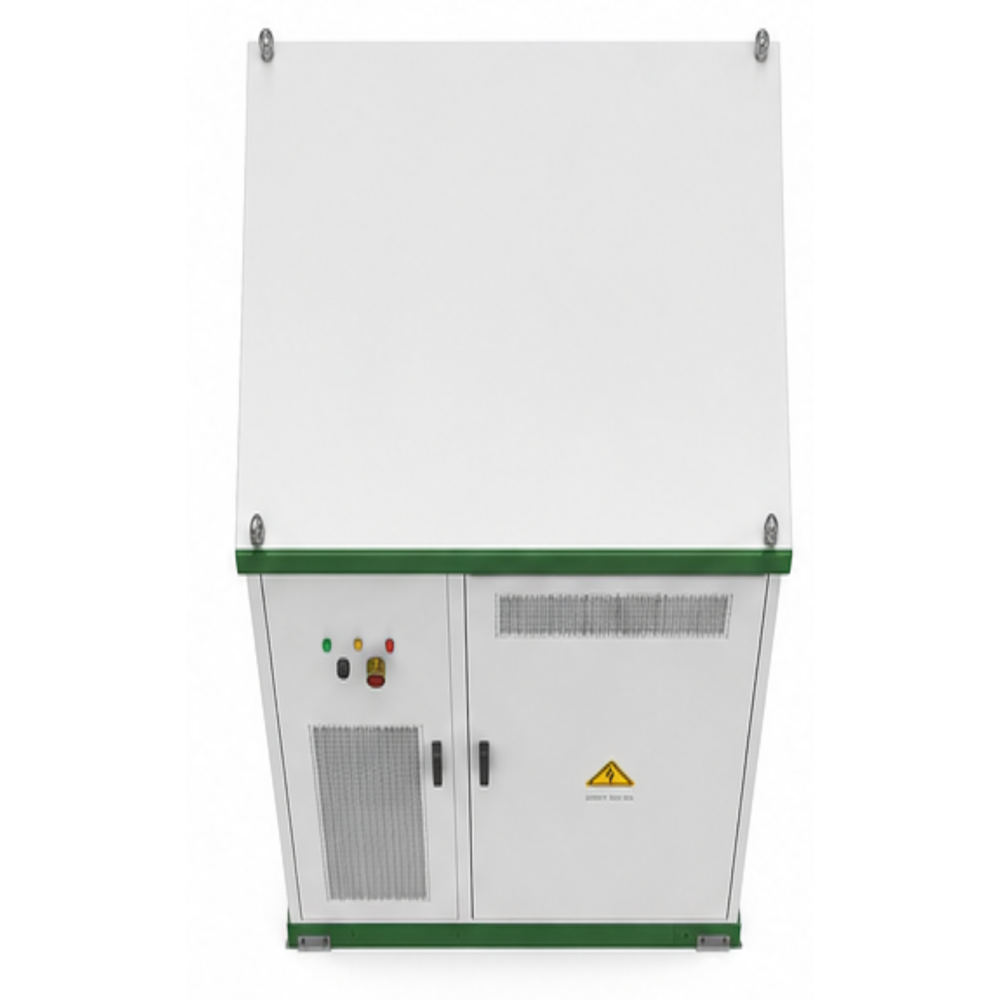

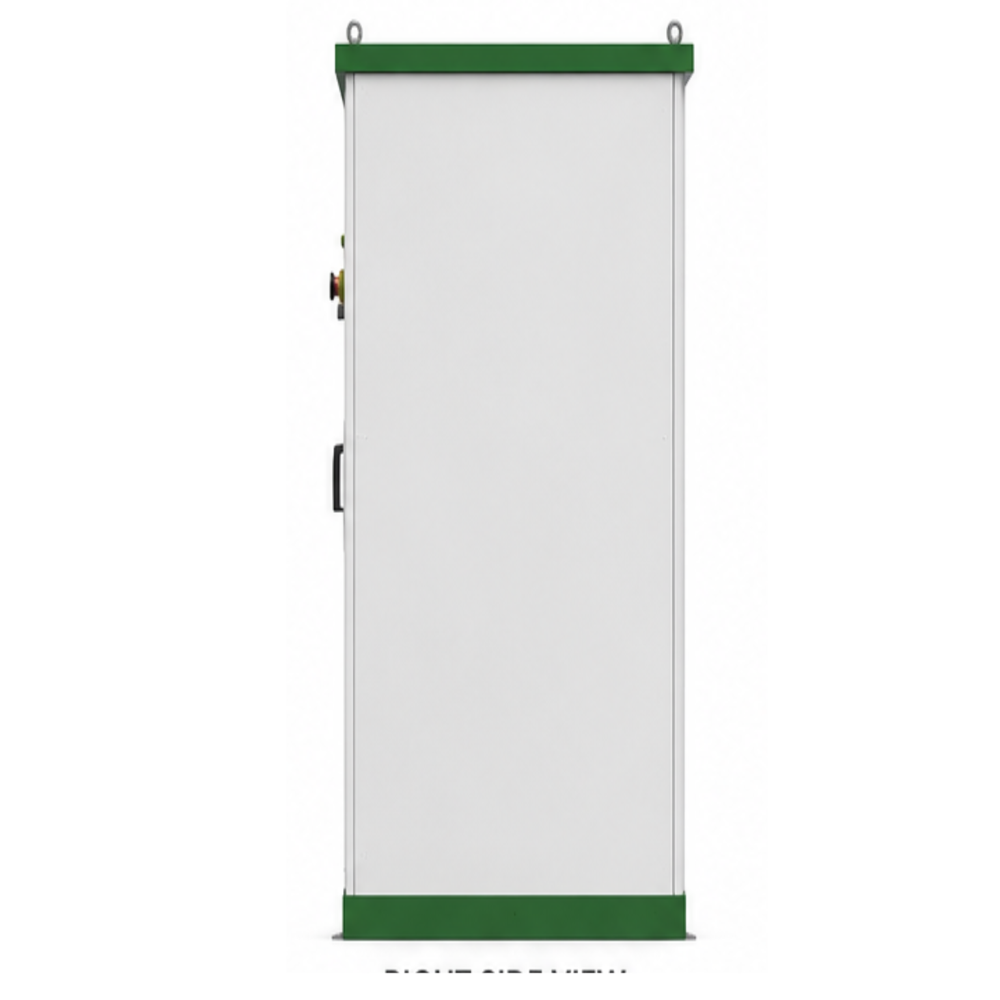

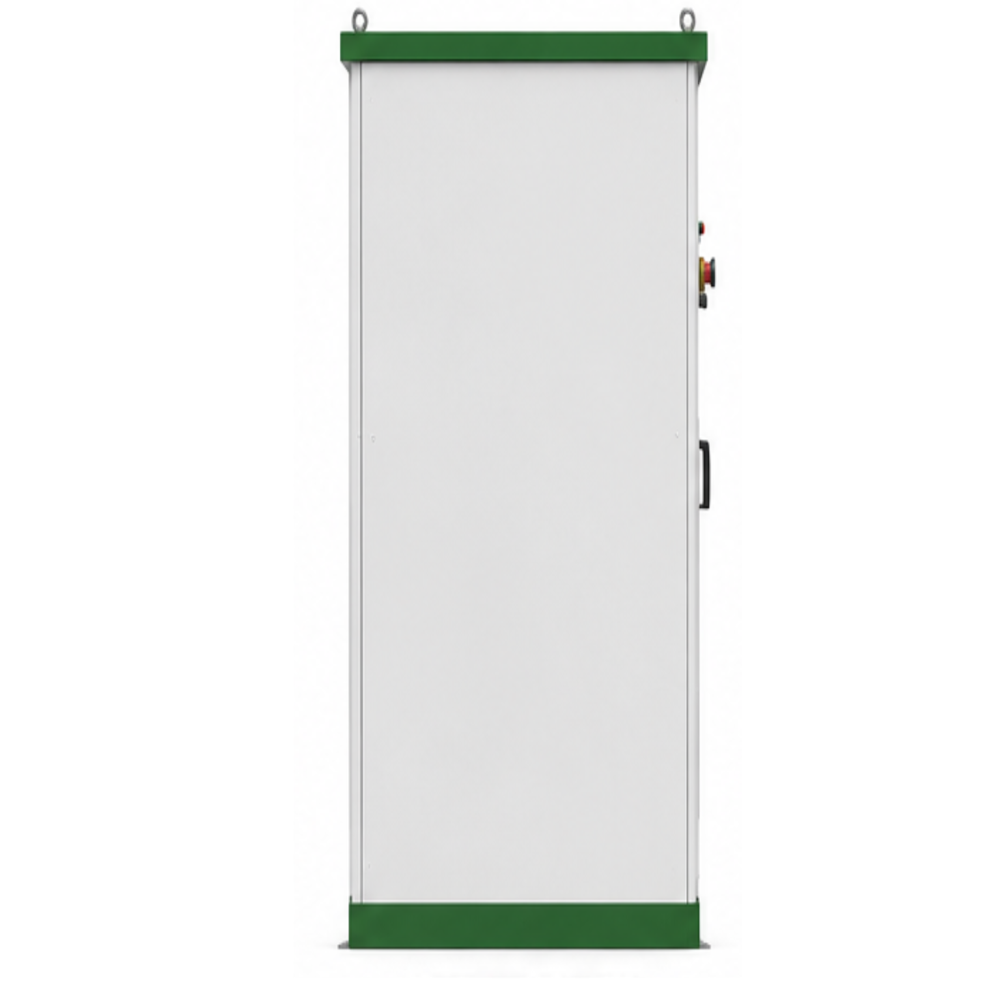

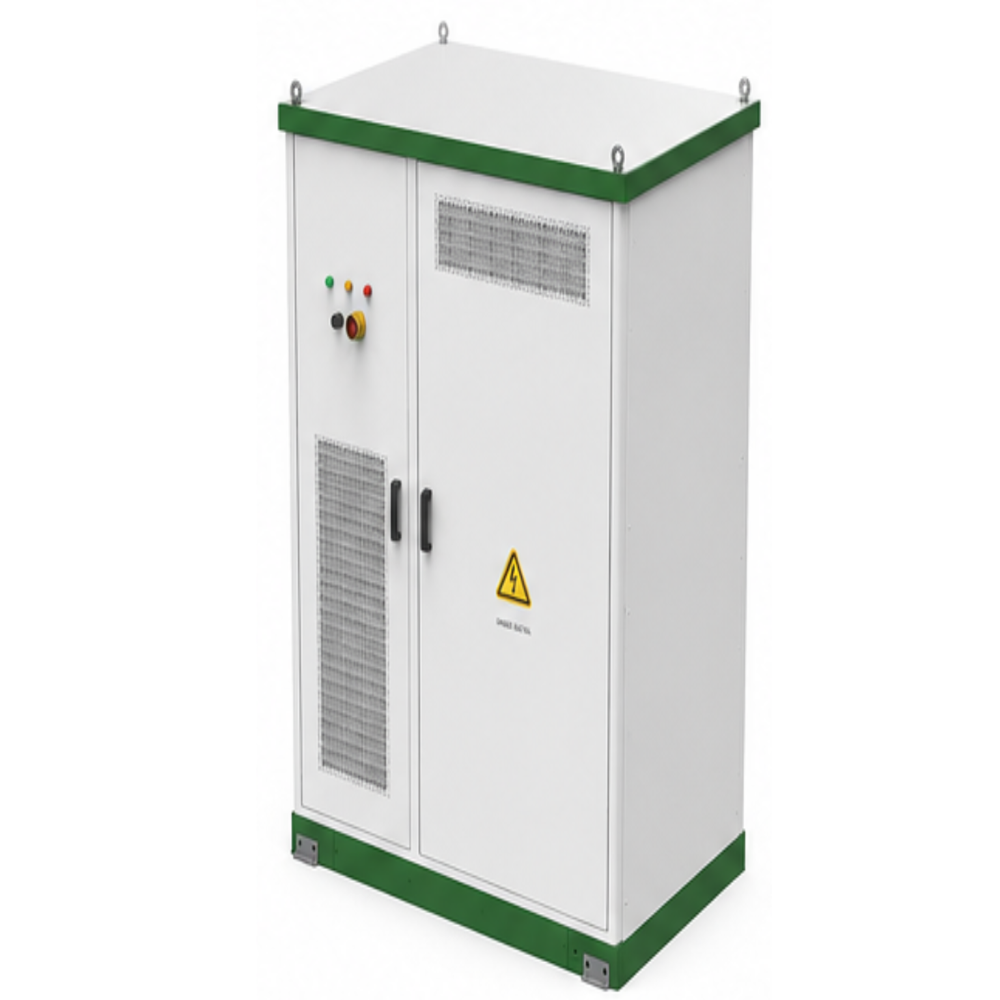

Outdoor Liquid Cooled On-grid ESS Cabinet

Send Inquiry

Request To Call Back

Outdoor Liquid Cooled On-grid ESS Cabinet

Name: Outdoor Liquid Cooled On-grid ESS Cabinet
Brand: Solrays Consultant
Price: 45.0 INR
Availability: InStock

Price 45.0 INR/ Piece

Get a Price/Quote

MOQ : 233 Pieces

Outdoor Liquid Cooled On-grid ESS Cabinet Specification

Input Voltage
1000V DC Volt (V)

Maintenance Type
Low Maintenance

Features
Integrated liquid cooling, High safety standards, Modular cabinet design, Intelligent BMS, Weather-proof enclosure

Efficiency
> 92%

Product Type
Other

Material
Galvanized Steel

Number of Cells
Variable, up to 840 pcs

Power
250000W - 500000W Watt (w)

Operating Temperature
-20C to 55C Celsius (oC)

Max Voltage
1000V DC Volt (V)

Max System Voltage
1500V DC Volt (V)

Output Voltage
400V AC Volt (V)

Cable Length
70 Millimeter (mm)

Switch Mode
Other

Size
Large

Dimension (L*W*H)
1200mm x 2200mm x 2300mm Millimeter (mm)

Color
Grey

Weight
Approx. 3,500 kg Kilograms (kg)

Warranty
10years

Application
Industrial, Commercial

Type Of Technology
Other

Installation Type
Other

BMS Function
Real-time monitoring, remote diagnostics

Charge/Discharge Rate
0.5C Continuous

Humidity Range
5% - 95% RH, non-condensing

Monitoring
SCADA/Cloud compatible

Emergency Off
Included, external access

Protection Grade
IP55

Noise Level
< 70 dB(A) @ 1m

Fire Protection System
Integrated automatic fire suppression

Grid Support
Reactive power compensation, black start capability

Cooling System
Active Liquid Cooling

Altitude Limit
< 2000 m

Cycle Life
> 6000 cycles @ 80% DOD

Communication Interface
RS485/CAN/Ethernet

Outdoor Liquid Cooled On-grid ESS Cabinet Trade Information

Minimum Order Quantity
233 Pieces

Delivery Time
7 Days

About Outdoor Liquid Cooled On-grid ESS Cabinet

280ah large capacity cells, with an 8000-cycle long lifespan, ensuring a durable and stable power supply. Effectively reduces battery temperature, enhancing battery performance and lifespan.Requires minimal space, easy to deploy, and suitable for various spatial environments.

Superior Cooling with High Protection

This ESS Cabinet employs an active liquid cooling system to manage heat efficiently, ensuring longevity and optimal performance in challenging outdoor environments. The IP55-rated enclosure, crafted from galvanized steel, protects sensitive components from dust, rain, and humidity, supporting continuous operation between 5% to 95% RH and altitudes up to 2000 meters.

Advanced Safety and Monitoring Features

Safety is paramount, with a fully integrated automatic fire suppression system and low-noise operation below 70 dB(A) at 1 meter. The intelligent BMS delivers real-time monitoring, remote diagnostics, and emergency off functionality. SCADA and cloud compatibility ensure users can oversee operations conveniently and efficiently.

Flexible Grid Support and Modular Design

Offering power outputs from 250 kW to 500 kW with customizable cable lengths, the cabinet easily supports grid services such as reactive power compensation and black start capability. Its modular structure and large capacity support up to 840 battery cells, making it scalable for varying application needs while maintaining efficiency over 92%.

FAQ's of Outdoor Liquid Cooled On-grid ESS Cabinet:

Q: How does the liquid cooling system enhance the performance of the ESS cabinet?

A: The active liquid cooling system regulates battery temperature, ensuring efficient heat dissipation even under heavy loads. This maintains optimal battery performance, extends lifespan, and ensures safe operation across a broad temperature range, supporting consistent output in demanding outdoor conditions.

Q: What safety features are integrated into the ESS cabinet?

A: Safety is ensured through an automatic fire suppression system, intelligent BMS for real-time monitoring and remote diagnostics, and an emergency off switch accessible externally. The robust IP55 galvanized steel enclosure protects against environmental hazards, while the system operates with less than 70 dB(A) noise at 1 meter.

Q: When should this ESS cabinet be considered for installation?

A: This ESS cabinet is ideal for projects requiring reliable, scalable energy storage in commercial, industrial, or utility-scale applications. It's particularly suited to environments demanding high protection, energy efficiency, and advanced grid support functionalities, such as reactive power compensation and black start.

Q: Where can the ESS cabinet be installed?

A: Designed for outdoor floor-mounted installation, the cabinet withstands harsh environments and varying climate conditions common across India. Its weather-proof, IP55-rated enclosure safeguards internal components against dust, rain, and humidity, making it suitable for various industrial and utility sites.

Q: What is the process for monitoring and maintaining the ESS cabinet?

A: Monitoring is streamlined through compatibility with SCADA and cloud-based systems, providing real-time insights and remote diagnostics. The system requires minimal routine maintenance, thanks to its robust LFP chemistry, integrated cooling, and fire protection. Emergency off switches and modular design make accessibility and servicing straightforward.

Q: How is the energy storage cabinet used within the grid?

A: The ESS cabinet operates in on-grid mode, supporting the grid with services such as reactive power compensation and black start capability. It efficiently charges and discharges with a 0.5C continuous rate, enabling seamless integration for load balancing, reliability improvement, and peak shaving in diverse energy infrastructures.

Q: What are the main benefits of choosing this liquid-cooled ESS cabinet?

A: Key benefits include high safety standards, over 6000 cycle life at 80% depth of discharge, modular and scalable design, high efficiency exceeding 92%, robust weather-proofing, and advanced grid support functions. These features collectively deliver dependable and flexible energy storage for commercial, industrial, and utility applications.
