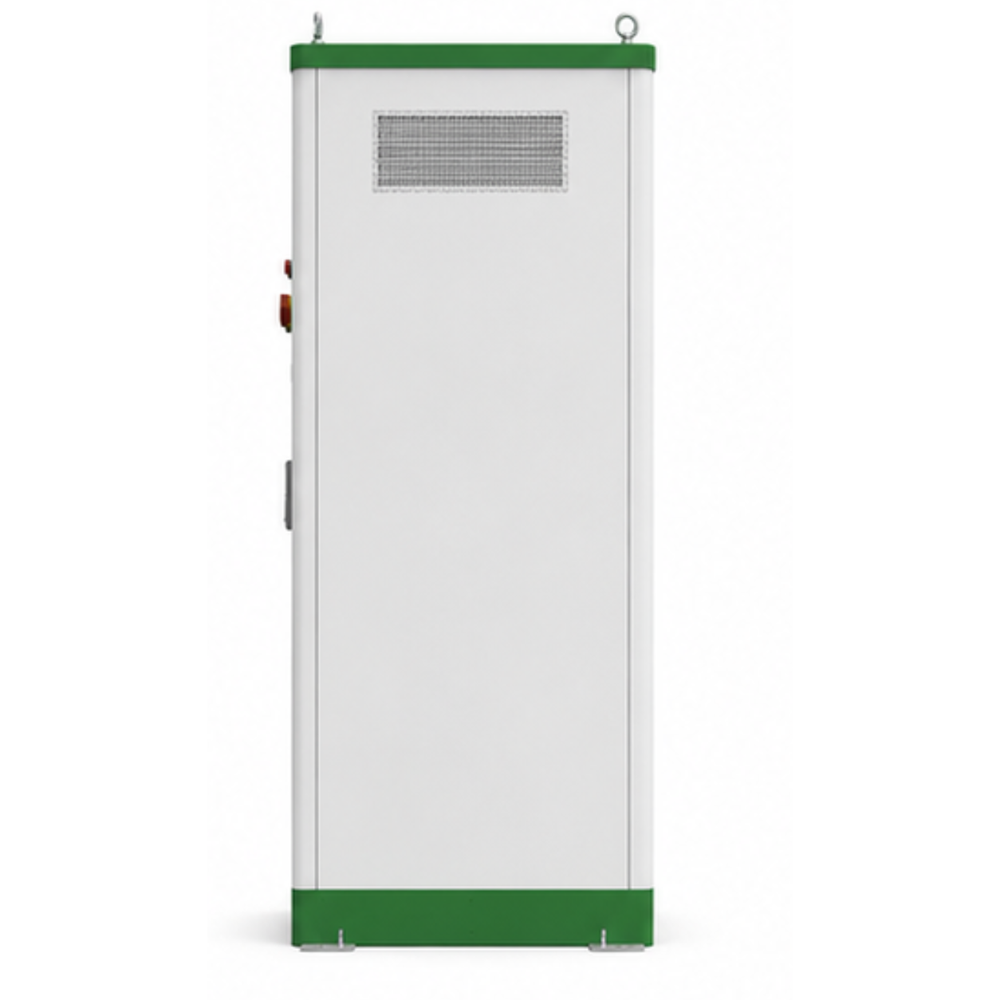

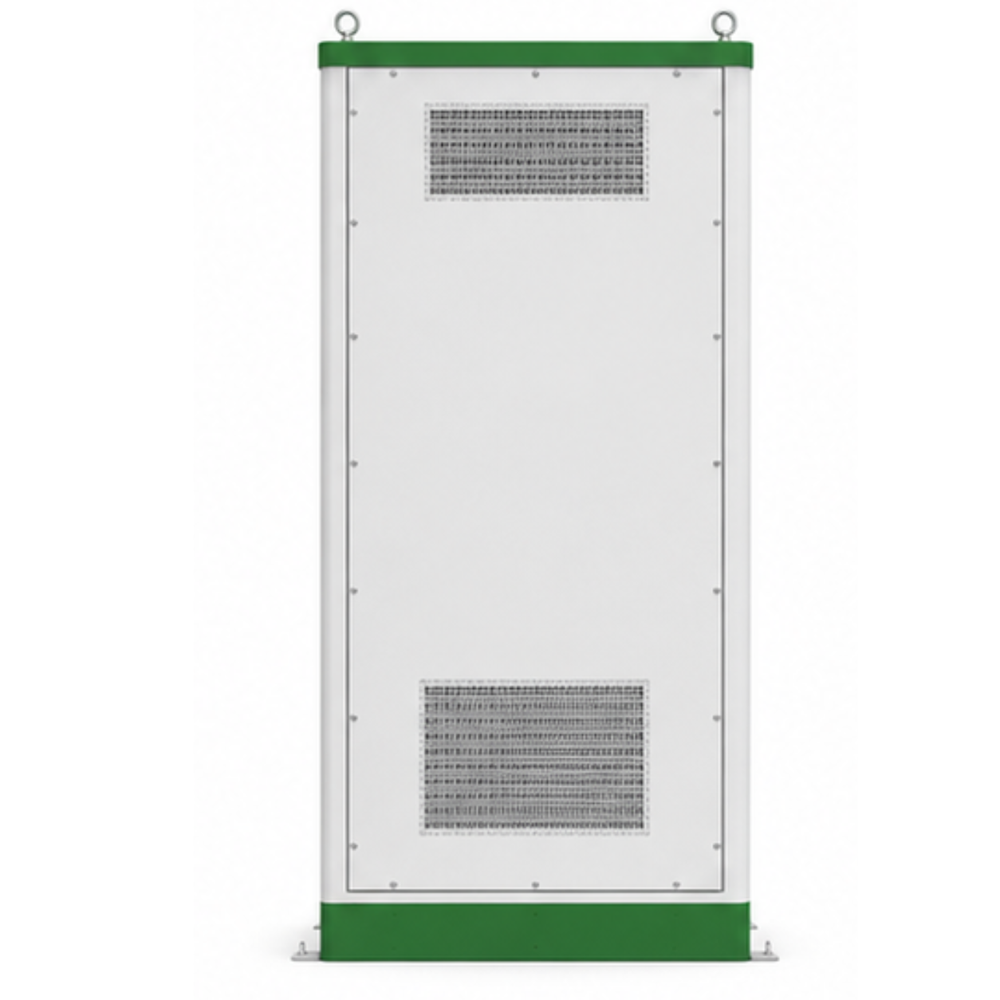

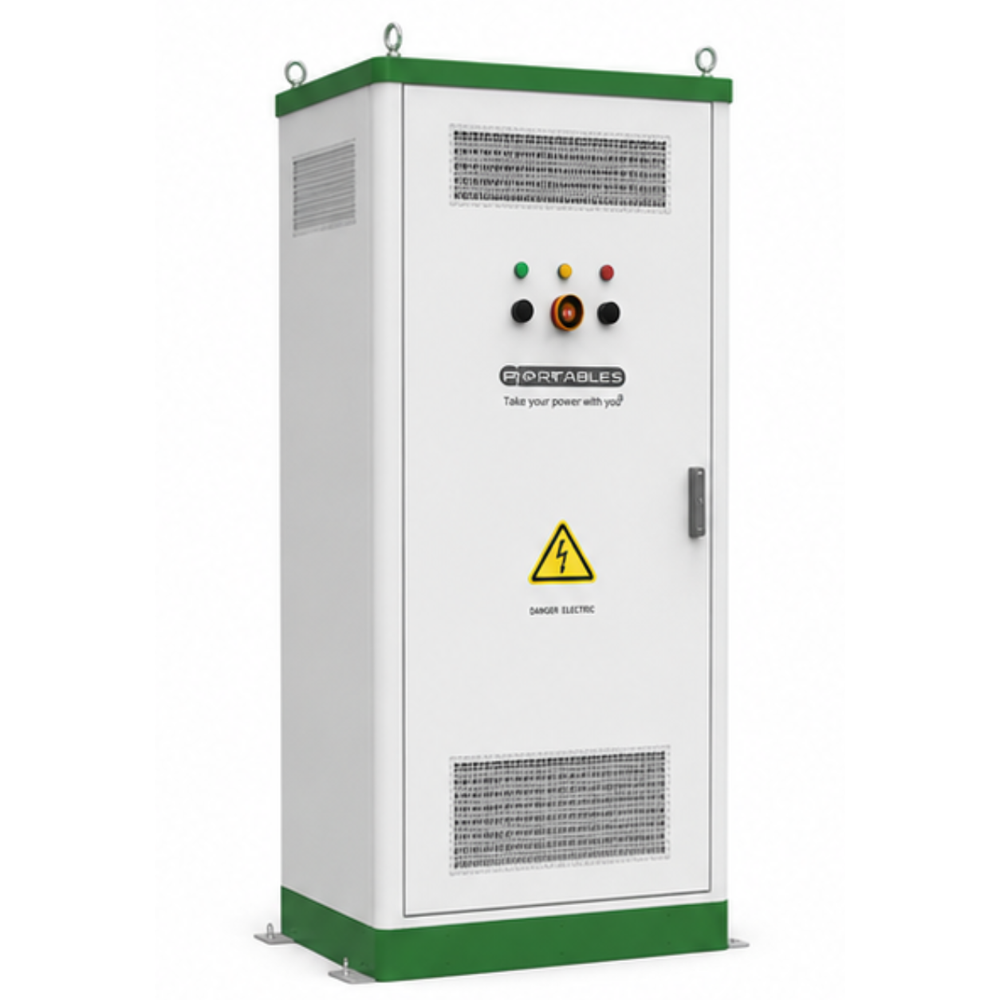

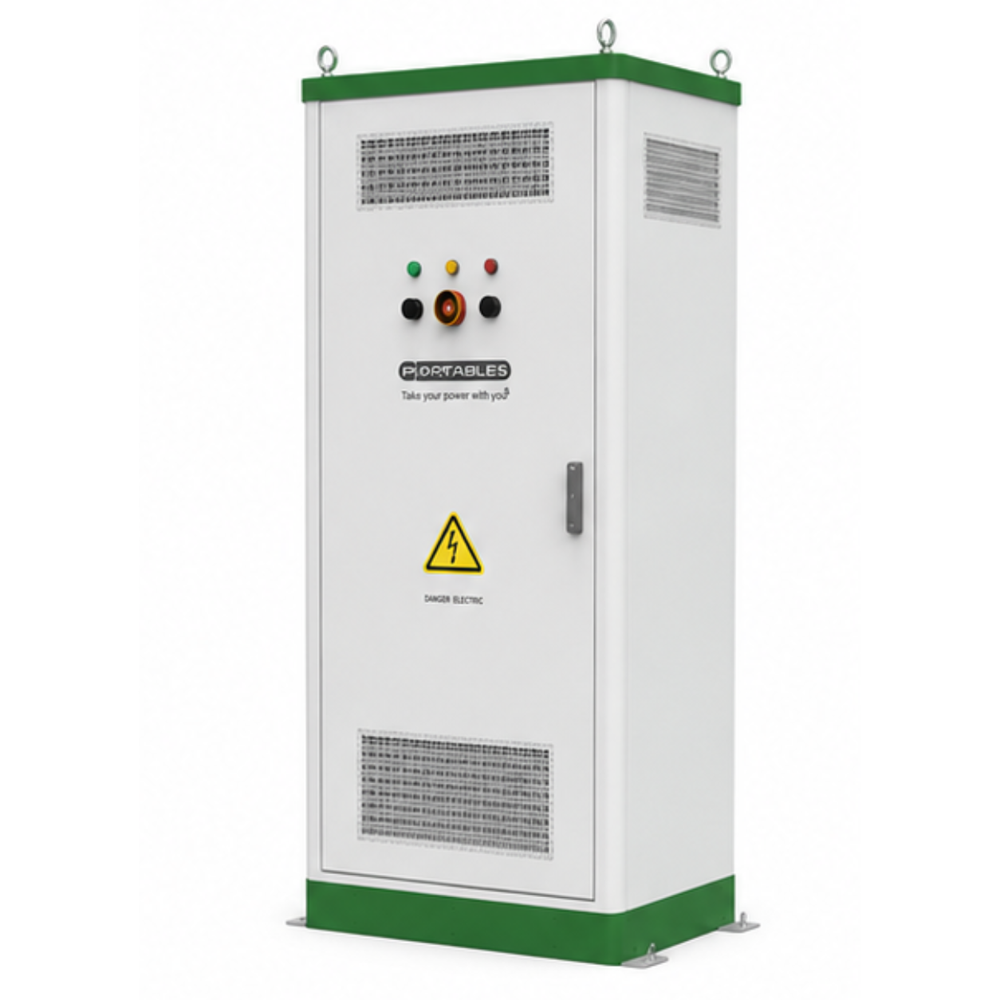

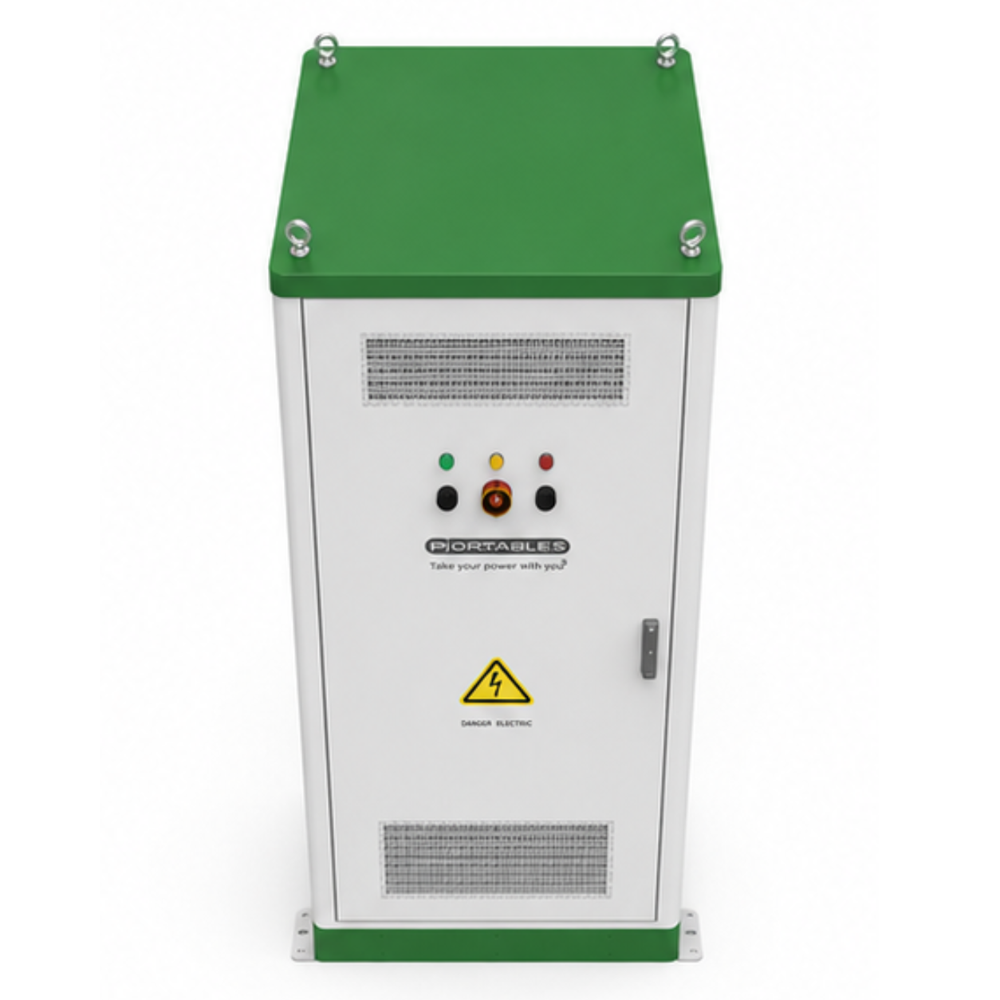

Outdoor Liquid Cooled On-grid ESS Cabinet

Name: Outdoor Liquid Cooled On-grid ESS Cabinet
Brand: Solrays Consultant
Price: 2800000.0 INR
Availability: InStock

Price 2800000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Outdoor Liquid Cooled On-grid ESS Cabinet Specification

Maintenance Type
Low Maintenance

Efficiency
> 92%

Input Voltage
380V - 1000V DC Volt (V)

Features
Liquid Cooling, Robust Weather Resistance, Smart Monitoring System, Rapid Response

Product Type
Other

Material
High-strength Steel, Industrial-grade Electronics

Number of Cells
128 cells (typical)

Power
100000W - 500000W (configurable) Watt (w)

Operating Temperature
-20C to 55C Celsius (oC)

Max Voltage
600V DC Volt (V)

Max System Voltage
1000V DC Volt (V)

Output Voltage
400V AC Volt (V)

Cable Length
70 Millimeter (mm)

Switch Mode
Other

Size
Large Outdoor Cabinet

Dimension (L*W*H)
1400 x 1200 x 2350 mm Millimeter (mm)

Color
Grey / Customizable

Weight
Approx. 2200 kg Kilograms (kg)

Warranty
10years

Application
Commercial , Industrial

Type Of Technology
Other

Installation Type
Other

Cooling Method
Advanced liquid cooling with forced circulation

Protection Grades
IP54 (standard), IP65 (optional)

Grid Connection
Three-phase, Compatible with standard grid codes

Humidity Tolerance
0 - 95% RH, non-condensing

Noise Level
< 65 dB(A) @ 1 meter

Communication Interface
RS485, CAN, Ethernet, 4G/Wi-Fi (optional)

Fire Protection System
Integrated fire suppression (optional)

Compliance Standards
IEC 62619, UN38.3, CE, UL1973

Display & Monitoring
Touch Screen HMI & Remote Monitoring

BMS (Battery Management System)
Intelligent BMS with cell-level monitoring

Battery Capacity Range
200 kWh - 1000 kWh (configurable)

Cycle Life
> 6000 cycles @ 80% DOD

Outdoor Liquid Cooled On-grid ESS Cabinet Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
45 Days

About Outdoor Liquid Cooled On-grid ESS Cabinet

280ah large capacity cells, with an 8000-cycle long lifespan, ensuring a durable and stable power supply. Effectively reduces battery temperature, enhancing battery performance and lifespan. Requires minimal space, easy to deploy, and suitable for various spatial environments.

Efficient Energy Storage for Modern Grid Needs

Engineered for large-scale projects, this ESS cabinet delivers high power (100 kW - 500 kW) with rapid response to grid fluctuations and energy peaks. Designed for seamless integration with renewable energy and utility grids, it offers more than 6,000 cycles at 80% depth of discharge, ensuring long-term reliability and cost-effectiveness. Its advanced liquid cooling ensures optimal performance while maintaining low noise levels.

Robust Safety and Smart Monitoring Features

Safety is elevated with optional integrated fire suppression, protection grades up to IP65, and compliance with international standards such as IEC 62619 and UL1973. The system's intelligent BMS provides cell-level analytics and remote monitoring via a user-friendly HMI touch screen or through communication networks, allowing users to access real-time operational data and diagnostics.

Flexible Configuration and Easy Deployment

With customizable battery capacity, output voltage, and cable lengths, the ESS cabinet adapts to various site requirements. Its outdoor, ground-mounted design and weather-resistant enclosure make it ideal for tough environments, while low maintenance needs further reduce operational costs. Installation and commissioning are streamlined for efficient project deployment.

FAQ's of Outdoor Liquid Cooled On-grid ESS Cabinet:

Q: How does the advanced liquid cooling system benefit the ESS cabinet's performance?

A: The liquid cooling system uses forced circulation to efficiently manage battery temperature, ensuring optimal energy output, longevity, and safety, even under high loads or extreme ambient conditions. This results in improved cycle life and enhanced reliability compared to air-cooled solutions.

Q: What steps are involved in installing the Outdoor Liquid Cooled On-grid ESS Cabinet?

A: Installation includes site preparation, ground mounting the cabinet, connecting to the grid and communication interfaces, and configuring the system via the HMI touch screen. Commissioning ensures all safety checks, system parameters, and remote monitoring functions are operational.

Q: Where can this ESS cabinet be effectively used?

A: It is ideal for commercial, utility, microgrid, and renewable integration applications, such as solar farms, wind plants, industrial facilities, and peak shaving for electrical grids. Its outdoor, IP54/IP65-rated enclosure ensures suitability for diverse environmental settings.

Q: What protection and safety features are included in the ESS cabinet?

A: The cabinet offers robust protection with configurable IP54/IP65 enclosure ratings, optional integrated fire suppression, and compliance with IEC 62619, UN38.3, CE, and UL1973 standards. The intelligent BMS continuously monitors each cell, providing real-time alerts and diagnostics.

Q: How can users monitor and control the ESS cabinet remotely?

A: Remote monitoring and control are available through Ethernet or optional 4G/Wi-Fi connectivity, enabling data access, performance tracking, and system adjustments via the integrated HMI touch screen or connected devices from anywhere with network access.

Q: What maintenance is required for the ESS cabinet?

A: The system is designed for low maintenance due to its robust electronics and intelligent BMS. Regular inspections of the cooling system, electrical connections, and system software updates are recommended to ensure continued safety and optimal performance.
